Falkirk Wheel

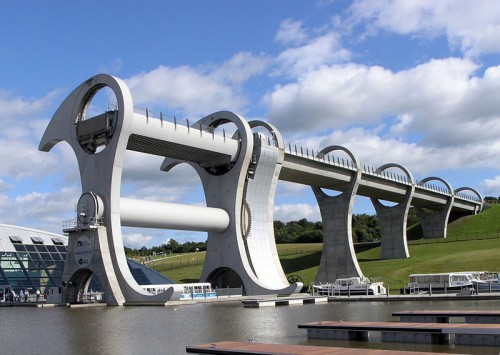

The Falkirk Wheel, named after the nearby town of Falkirk in central Scotland, is a rotating boat lift connecting the Forth and Clyde Canal with the Union Canal, which at this point differ by 35 metres in height.

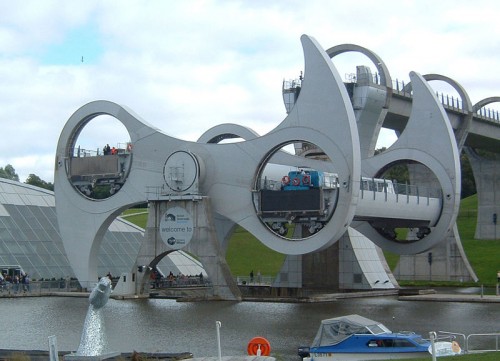

It consists of two diametrically opposed caissons which always weigh the same whether or not they are carrying their capacity of 600 tonnes of floating canal barges. According to Archimedes’ principle floating objects displace their own weight in water. This keeps the wheel balanced and so, despite its enormous mass, it rotates through 180° in less than four minutes while using very little power.
